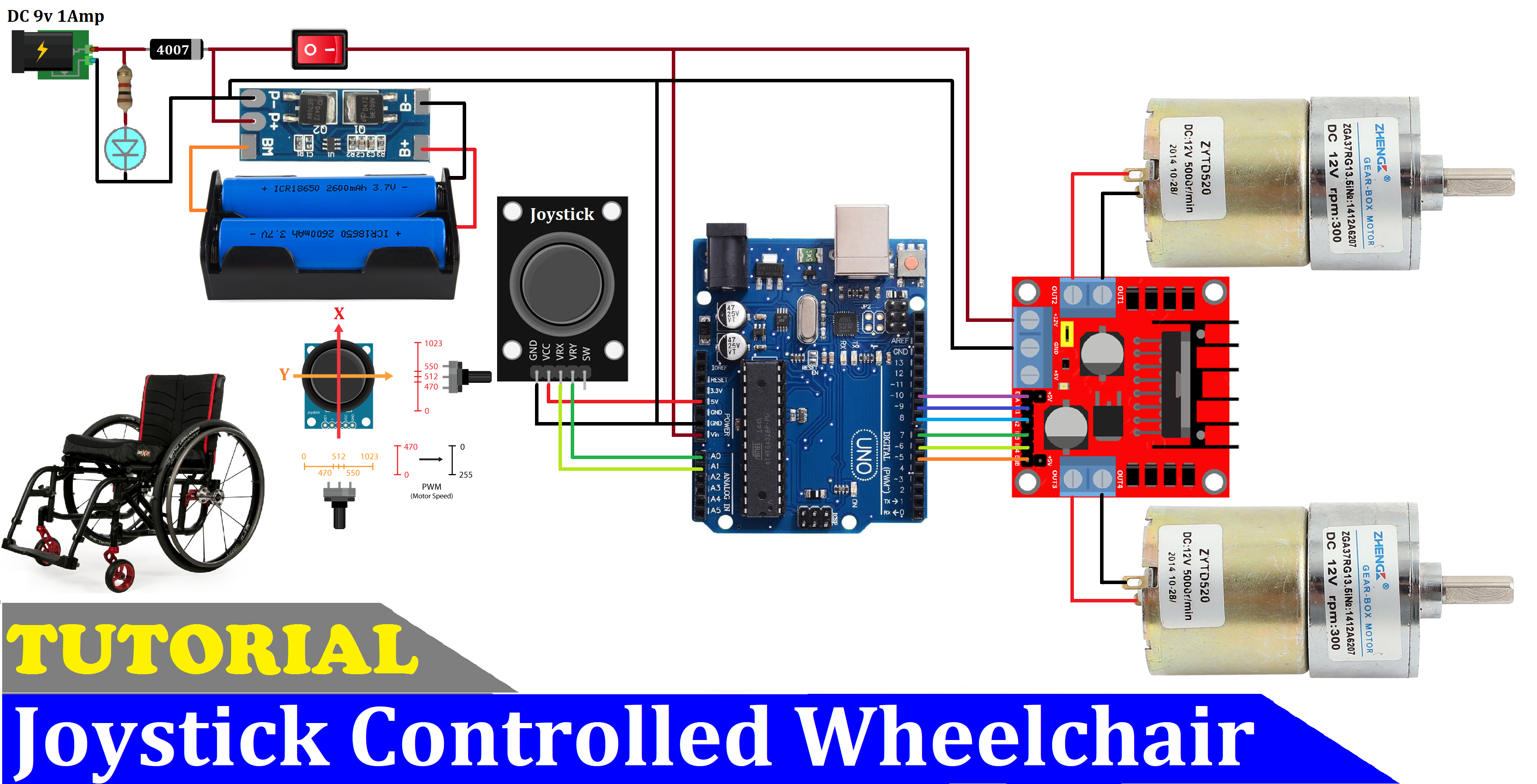

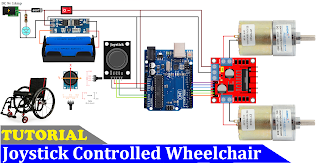

Diagram
CODE
#define yAxis_pin A0 // Joysticks Y-axis
#define xAxis_pin A1 // Joysticks X-axis
#define enA 5
#define in1 6
#define in2 7
#define in3 8
#define in4 9
#define enB 10
int motorSpeedA = 0;
int motorSpeedB = 0;
void setup(){
pinMode(xAxis_pin, INPUT);
pinMode(yAxis_pin, INPUT);
pinMode(enA, OUTPUT);
pinMode(in1, OUTPUT);
pinMode(in2, OUTPUT);
pinMode(in3, OUTPUT);
pinMode(in4, OUTPUT);
pinMode(enB, OUTPUT);
delay(100);
}
void loop(){
int xAxis = analogRead(xAxis_pin); // Read Joysticks X-axis
int yAxis = analogRead(yAxis_pin); // Read Joysticks Y-axis
// If joystick stays in middle the motors are not moving
if(xAxis > 470 && xAxis <550 && yAxis > 470 && yAxis <550){Stop();}
if (xAxis > 470 && xAxis <550){
// Y-axis used for left and right control
if (yAxis < 470){turnRight();
// Convert the declining Y-axis readings for going backward from 470 to 0 into 0 to 255 value for the PWM signal for increasing the motor speed
motorSpeedA = map(yAxis, 470, 0, 0, 255);
motorSpeedB = map(yAxis, 470, 0, 0, 255);
}
if (yAxis > 550) {turnLeft();
// Convert the increasing Y-axis readings for going forward from 550 to 1023 into 0 to 255 value for the PWM signal for increasing the motor speed
motorSpeedA = map(yAxis, 550, 1023, 0, 255);
motorSpeedB = map(yAxis, 550, 1023, 0, 255);
}
}else{
if (yAxis > 470 && yAxis <550){
// X-axis used for forward and backward control
if (xAxis < 470){forword();}
if (xAxis > 550){backword();}
if (xAxis < 470){
// Convert the declining X-axis readings for going backward from 470 to 0 into 0 to 255 value for the PWM signal for increasing the motor speed
motorSpeedA = map(xAxis, 470, 0, 0, 255);
motorSpeedB = map(xAxis, 470, 0, 0, 255);
}
if (xAxis > 550){
// Convert the increasing X-axis readings for going forward from 550 to 1023 into 0 to 255 value for the PWM signal for increasing the motor speed
motorSpeedA = map(xAxis, 550, 1023, 0, 255);
motorSpeedB = map(xAxis, 550, 1023, 0, 255);
}
}else{
if(xAxis < 470){forword();}
if(xAxis > 550){backword();}
if(yAxis < 470){
// Convert the declining Y-axis readings from 470 to 0 into increasing 0 to 255 value
int yMapped = map(yAxis, 470, 0, 0, 255);
// Move to left - decrease left motor speed, increase right motor speed
motorSpeedA = motorSpeedA + yMapped;
motorSpeedB = motorSpeedB - yMapped;
// Confine the range from 0 to 255
if(motorSpeedA > 255) {motorSpeedA = 255;}
if(motorSpeedB > 70){motorSpeedB = 70;}
}
if (yAxis > 550){
// Convert the increasing Y-axis readings from 550 to 1023 into 0 to 255 value
int yMapped = map(yAxis, 550, 1023, 0, 255);
// Move right - decrease right motor speed, increase left motor speed
motorSpeedA = motorSpeedA - yMapped;
motorSpeedB = motorSpeedB + yMapped;
// Confine the range from 0 to 255
if(motorSpeedA < 70){motorSpeedA = 70;}
if(motorSpeedB > 255){motorSpeedB = 255;}
}
}
}
// Prevent buzzing at low speeds (Adjust according to your motors. My motors couldn't start moving if PWM value was below value of 70)
if(motorSpeedA < 70){motorSpeedA = 0;}
if(motorSpeedB < 70){motorSpeedB = 0;}
analogWrite(enA, motorSpeedA); // Send PWM signal to motor A
analogWrite(enB, motorSpeedB); // Send PWM signal to motor B
delay(10);
}
void forword(){
// Set Motor A forward
digitalWrite(in1, HIGH);
digitalWrite(in2, LOW);
// Set Motor B forward
digitalWrite(in3, LOW);
digitalWrite(in4, HIGH);
}
void backword(){
// Set Motor A backward
digitalWrite(in1, LOW);
digitalWrite(in2, HIGH);
// Set Motor B backward
digitalWrite(in3, HIGH);
digitalWrite(in4, LOW);
}
void turnRight(){
// Set Motor A forward
digitalWrite(in1, HIGH);
digitalWrite(in2, LOW);
// Set Motor B backward
digitalWrite(in3, HIGH);
digitalWrite(in4, LOW);
}
void turnLeft(){
// Set Motor B backward
digitalWrite(in1, LOW);
digitalWrite(in2, HIGH);
// Set Motor B forward
digitalWrite(in3, LOW);
digitalWrite(in4, HIGH);
}
void Stop(){
// Set Motor A stop
digitalWrite(in1, LOW);
digitalWrite(in2, LOW);
// Set Motor B stop
digitalWrite(in3, LOW);
digitalWrite(in4, LOW);
}
